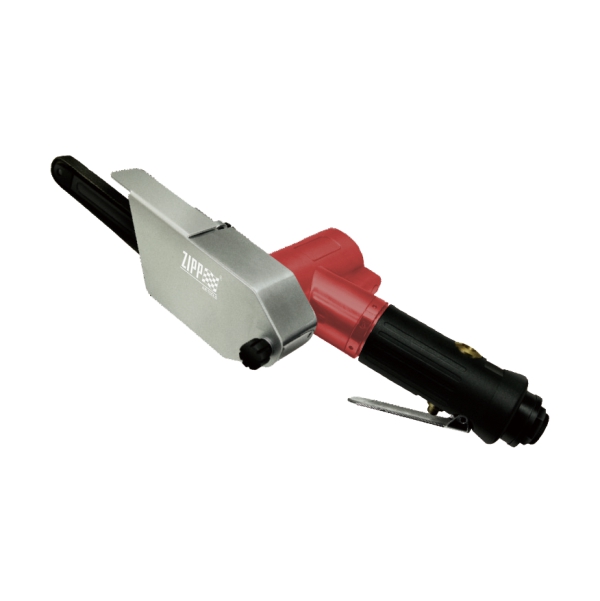

ZBS-371 Air Belt Sander
- Size of Belt : 10X330 mm
Specification:
- Wheel Material: STEEL WHEEL
- Size of Belt: 10X330 mm
- Free Speed: 16000 rpm
- Overall Length: 11.6(295) inch(mm)
- Air Inlet Size: 1/4 inch-NPT/PT
- Air Hose (I.D.): 3/8″
- Avg. Air Cons.: 4 cfm
- Net Weight: 0.95(2.09) kgs(lbs)

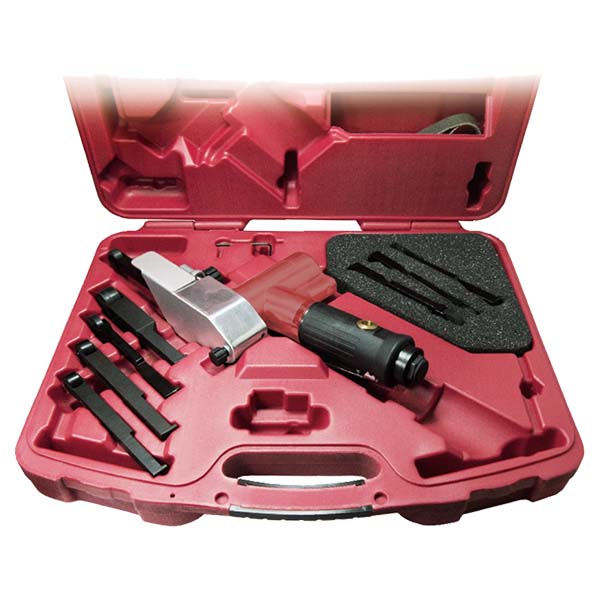

ZBS-371K Air Belt Sander Kit
KIT Contents:
- ZBS-371 1 pc
- 371-AA 1 pc
- 371-AD 1 pc
- 371-BB 1 pc
- 371-BF 1 pc
- 371-BG 1 pc
- 371-BH 1 pc
- 371-CC 1 pc
- 371-DE 1 pc
- 3 pcs Belt of Each Arm
(#80, #100, #120) 24 pcs
- Blow Case 1 pc
 |  |  |  |
| 371-AA Contact Arm Assy for belt wide 8&10 | 371-AD Contact Arm Assy for belt wide 10&12 | 371-BB Contact Arm Assy for belt wide 3 | 371-BF Contact Arm Assy for belt wide 8&10 |
 |  |  |  |
| 371-BG Contact Arm Assy for belt wide 3&5 | 371-BH Contact Arm Assy for belt wide 5&6 | 371-CC Contact Arm Assy for belt wide 10&12 | 371-DE Contact Arm Assy for belt wide 8&10 |
| Model | Wheel Material | Size of Belt mm | Free Speed rpm | Overall Length inch(mm) | Air Inlet Size inch-NPT/PT | Air Hose (I.D.) | Avg. Air Cons. cfm | Net Weight lbs(kgs) |
| ZBS-3892 | STEEL WHEEL | 20X640 | 13000 | 16.34(415) | 1/4 | 3/8″ | 4 | 3.3(1.5) |
| ZBS-3893A | RUBBER WHEEL | 30X640 | 13000 | 16.34(415) | 1/4 | 3/8″ | 4 | 3.3(1.5) |
| ZBS-3893G | RUBBER WHEEL | 30X760 | 3300 | 16.34(415) | 1/4 | 3/8″ | 4 | 3.3(1.5) |
| ZBS-3894 | RUBBER WHEEL | 40X750 | 13000 | 16.34(415) | 1/4 | 3/8″ | 4 | 3.3(1.5) |
| ZBS-3894G | RUBBER WHEEL | 40X750 | 3300 | 16.34(415) | 1/4 | 3/8″ | 4 | 3.3(1.5) |
| ZBS-371 | STEEL WHEEL | 10X330 | 16000 | 11.6(295) | 1/4 | 3/8″ | 5 | 3.3(1.5) |
