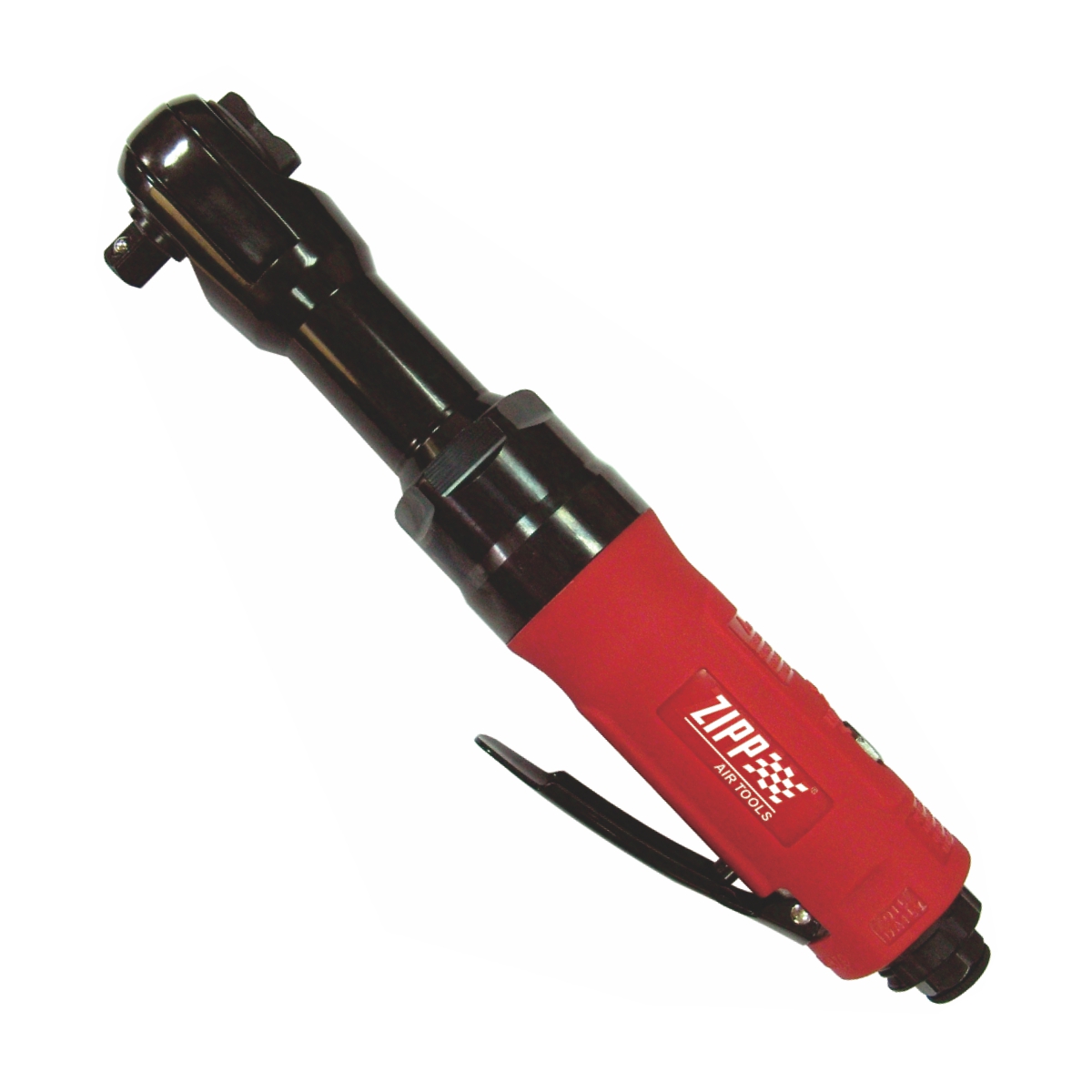

ZP163 3/8 inch Air Ratchet Wrench
Specification:
- Square Drive: 3/8(10) inch(mm)
- Std. Bolt Size: 1/4(6.4) inch(mm)
- Free Speed: 175 rpm
- Max. Torque: 50(68) ft-lb(Nm)
- Avg. Air Cons.: 3(85) cfm(l/min)
- Air Inlet Size: 1/4 inch
- Net Weight: 2.6(1.18) lbs(kgs)
- Overall Length: 10-13/32(265) inch(mm)
- Min. Hose Size: 3/8(10) inch(mm)
- Operating Air Pressure: 90(6.2) PSI(kg/cm2)
ZP163KÂ Air Ratchet Wrench Kit
- 1 pc Ratchet wrench
- 7 pcs Sockets
- 1 pc Nipple
- 1 pc Universal Joint
- 1 pc 75mm Extension Bar
- 1 pc Blow Molded Case
| Model | Square Drive inch(mm) | Std Bolt Size inch(mm) | Free Speed rpm | Max. Torque ft-lb(Nm) | Avg. Air Cons. cfm(l/min) | Air Inlet Size inch | Net Weight lbs(kgs) | Overall Length inch(mm) | Min Hose Size inch(mm) |
| ZHD-7728 | – | – | 400 | 35(47.5) | 3(85) | 1/4 | 1.06(0.48) | 6-17/64(159) | 3/8(10) |
| ZP161 | 1/2(12.7) | 1/4(6.4) | 175 | 50(68) | 3(85) | 1/4 | 2.6(1.18) | 10-13/32(265) | 3/8(10) |
| ZP163 | 3/8(10) | 1/4(6.4) | 175 | 50(68) | 3(85) | 1/4 | 2.6(1.18) | 10-13/32(265) | 3/8(10) |

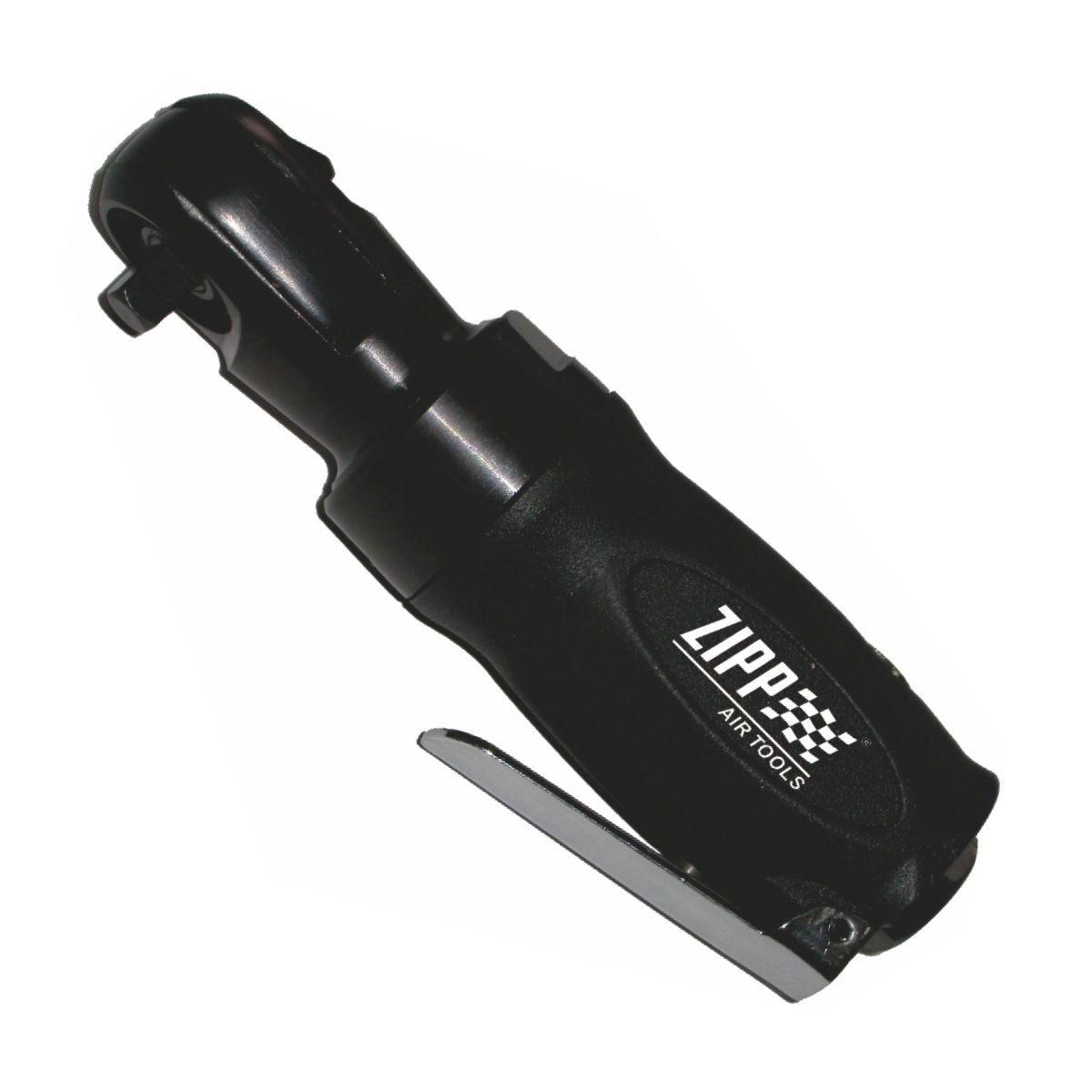

| ZP168 | 1/4(6.4) | 1/4(6.4) | 260 | 20(27) | 2.5(70) | 1/4 | 0.99(0.45) | 5-1/4(133) | 1/4(6.4) |
| ZP169 | 3/8(10) | 1/4(6.4) | 260 | 20(27) | 2.5(70) | 1/4 | 0.99(0.45) | 5-1/4(133) | 1/4(6.4) |
Recommended Gauge Air Pressure: 60~90psi
