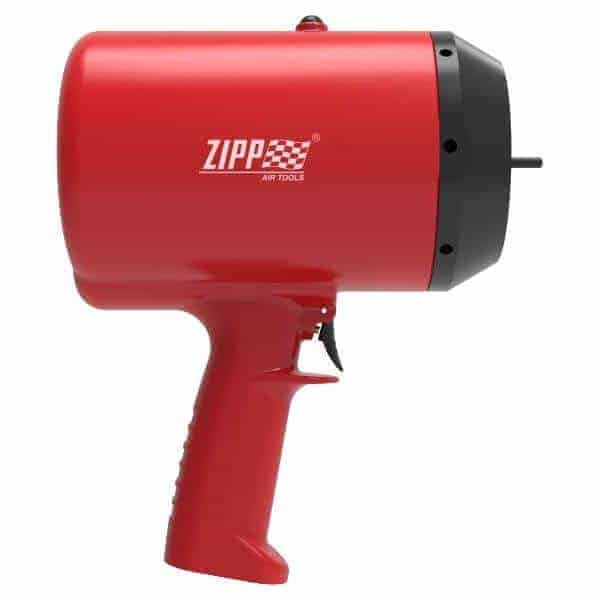

ZV50 Standard Installation Tool
Features
- ZIPP offers a range of standard fastener tools as well as high performance ZIPP hydraulic powerigs to complement the larger diameter fixed grip lock bolt fasteners is suitable for numerous assembly applications for multiple industries.
- ZIPP installation equipment / tooling systems work with the fastener to pull and clamp the application together quickly and safely. A typical installation equipment system comprises a tool, nose assembly, hose set and powerig unit. The powerig drives the tool and the nose assembly provides the installation link between the fastener and the tool. Installation tools and nose assemblies are designed to install specific fastener types and diameters – the choice of the installation equipment system is determined by the fastener type, diameter, application and intended usage.
- The majority of the fasteners in the system have been designed to meet or exceed SAE Grade 5 or ASTM A-325 and ISO (8.8) strength requirements, ensuring high clamp force, tensile and shear strength depending on the application.
Specification:
- Stroke: 2.17(55) inch(mm)
- Pull Force: 76435(340) Lbf(KN)
- Pull Pressure: 7400(51) PSI(MPa)
- Return Pressure: 2900(20) PSI(MPa)
- Net Weight w/o Nose Assembly: 29.8(13.5) Ibs(kgs)
- Vibration: 8.6 m/sec
| Model | Stroke inch(mm) | Pull Force lbf(kN) | Pull Pressure psi(MPa) | Return Pressure psi(MPa) | Net Weight w/o Nose Assembly lbs(kgs) | Vibration m/sec |
| ZT10 | 1(25) | 13040(58) | 8000(55.2) | 3000(20.7) | 7.72(3.5) | 8.6 |
| ZT30 | 1.6(41) | 39340(175) | 8000(55.2) | 3000(20.7) | 17.6(8) | 8.6 |
| ZT51 | 2.56(65) | 78680(350) | 8000(55.2) | 3000(20.7) | 40.78(18.5) | 8.6 |
| ZV10 | 0.98(25) | 12365(55) | 7400(51) | 2900(20) | 7.7(3.5) | 2.5 |
| ZV30 | 1.6(41) | 39340(175) | 7400(51) | 2900(20) | 15.3(6.9) | 2.5 |
| ZV50 | 2.17(55) | 76435(340)1(25) | 7400(51) | 2900(20) | 29.8(13.5) | 8.6 |
