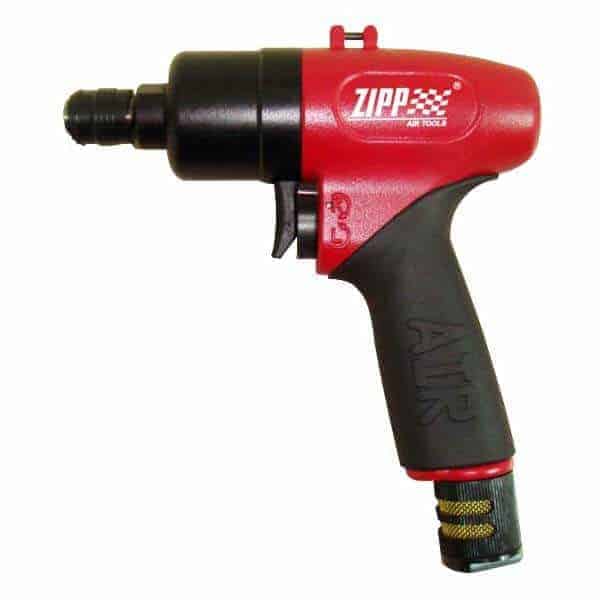

ZIS-237 1/4 inch Air Impact Driver / Rear Exhaust
Two Hammer:
- Double-Chamber 9 vanes motor provides the highest output power comparing with conventional motor for the highest productivity.
- Double Pin Hammer mechanism.
- One piece front end plate & cylinder design to improve motorefficiency.
- User friendly side reverse switch.
Specification:
- Hex. Drive: 1/4(6.4) inch(mm)
- Bolt Size Capacity: 6~8 mm
- Free Speed: 5300 rpm
- Max. Torque: 37(50) ft-lb(Nm)
- Operating Air Pressure : 90(6.2) PSI(bar)
- Avg. Air Cons.: 17.7(500) cfm(l/min)
- Net Weight: 1.9(0.84) lbs(kgs)
- Air Inlet Size: 1/4 inch-NPT/PT
| Model | Hex. Drive inch(mm) | Bolt Size Capacity mm | Free Speed rpm | Max. Torque ft-lb(Nm) | Operating Air Pressure psi(bar) | Avg. Air Cons. cfm(l/min) | Net Weight lbs(kgs) | Overall Length inch(mm) | Air Inlet Size inch-NPT/PT |
| ZID-036 | 1/4(6.4) | 6~8 | 8000 | 41(55) | 90(6.2) | 4.6(130) | 2.2(1) | 7-13/16(198) | 1/4 |
| ZID-040P | 1/4(6.4) | 6~8 | 8500 | 42(57) | 90(6.2) | 5.6(160) | 2.2(1) | 6-25/32(172) | 1/4 |
| ZID-350P | 1/4(6.4) | 10~12 | 11000 | 350(474) | 90(6.2) | 8.12(230) | 3.5(1.6) | 5-25/32(147) | 1/4 |
| ZIS-237 | 1/4(6.4) | 6~8 | 5300 | 37(50) | 90(6.2) | 17.7(500) | 1.9(0.84) | – | 1/4 |
