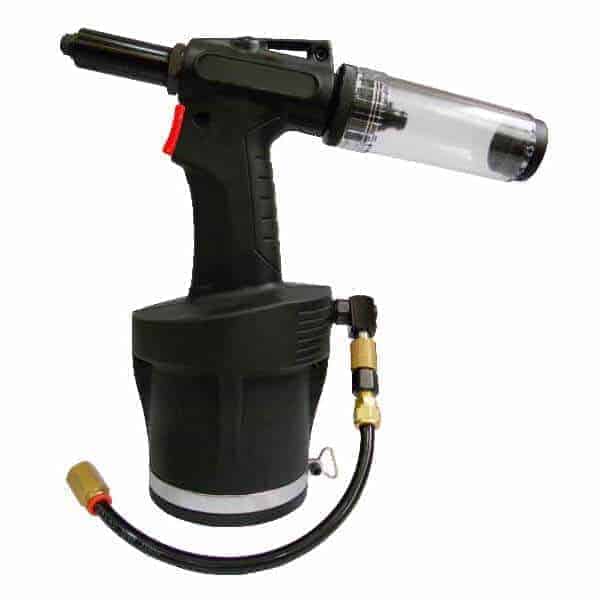

ZT0919VS 3/16 inch Composite Air Hydraulic Riveter
Full Composite Housing Series
Features
- Built with patented “Module units assembled in composite clam shell housing” for the ease of tool service.
- Patented “Broken mandrel vacuum collection system” for the cleanliness and safety of work area.
- Forged and heat treated aluminum alloy made Hydraulic Section for the best rigidity.
- Stainless steel made Air Cylinder for the best rigidity and durability of the tool.
- Easy adjustable Head & Nut designed for obtaining the most effective stroke.
- Ergonomic texture coated composite housing for operator’s comfort.
- Equipped with safety valve to avoid damage due to over pressure.
- Swivel air inlet design for maneuverability of works.
- The lightest model among compatible designs.
- Aluminum Alloy Forged Hydraulic Section
- Composite Clam Shell Housing
- Broken Mandrel Vacuum Collection System
- Air Actuating Module
- Air Hose
- Air Inlet Module
- Stainless Steel made Air Cylinder
- Spare Nose Pieces Port
Specification:
- Traction Power: 1980(900) Ibf(kgf)
- Stroke Length: 3/4(19) inch(mm)
- Net Weight: 3.3(1.5) lbs(kgs)
- Operating Air Pressure: 90(6.2) PSI(bar)
- Air inlet Size: 1/4 Inch-NPT/PT
- Min. Hose Size: 3/8(10) Inch(mm)
- Nosepieces Equipped: 3/32(2.4)1/8(3.2)5/32(4.0)3/16(4.8) Inch(mm)
DO NOT apply air pressure over 110 psi / 7.5 bar to these tools.
*Please refer to the blind rivet specification to ensure the tensile strength is lower than the traction power of the model you select.
| Model | Traction Power lbf(kgf) | Stroke Length inch(mm) | Net Weight lbs(kgs) | Operating Air Pressure psi(bar) | Air inlet Size inch-NPT/PT | Min. Hose Size inch(mm) | Nosepieces Equipped inch(mm) |
| ZT0919VS | 1980(900) | 3/4(19) | 3.3(1.5) | 90(6.2) | 1/4 | 3/8(10) | 3/32(2.4)1/8(3.2) 5/32(4.0)3/16(4.8) |
| ZT1821VS | 4013(1800) | 13/16(21) | 5.1(2.3) | 90(6.2) | 1/4 | 3/8(10) | 3/16(4.8)1/4(6.4) |
