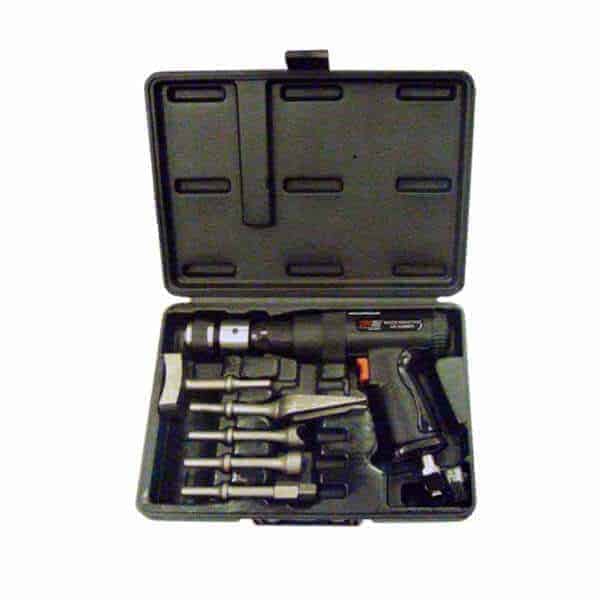

ZAH-393S Shock Reduced Air Hammer With Special Chassis Chisel Sets
Features
- Designed with following patents for assuring the best shock reduction and operator’s comfort.
1) Portable pneumatic tool assembled with module units.
2) Suspension vibration-reducing means for portable pneumatic tools. - Alloy steel made impact parts, heat-treated for durability.
- Quick Change Retainer for simple accessory changes.
- Ergonomic handle with rubber made exhaust muffler for added operator’s comfort.
- Optional patented universal swivel air inlet joint for the best maneuverability of the tool.
Specification:
- Chisel Shank Opening: 0.401(10.2) inch(mm)
- Bore Diameter: 3/4(19) inch(mm)
- Stroke Length: 2-5/8(66) inch(mm)
- Blows Per Minute: 3000 bpm
- Avg. Air Cons.: 4.95(140) cfm(l/min)
- Net Weight: 4(1.8) lbs(kgs)
- Air Inlet Size: 1/4 PT/NPT
- Operating Air Pressure: 90(6.2) PSI(bar)
- Min. Hose Size: 3/8(10) inch(mm)
- Vibration: 10 m/s2
| Model | Chisel Shank Opening inch(mm) | Bore Diameter inch(mm) | Stroke Length inch(mm) | Blow Per Minch bpm | Avg. Air Cons cfm(l/min) | Net Weight lbs(kgs) | Minch Hose Size inch(mm) | Vibration m/s² |
| ZAH-393S | 0.401(10.2) | 3/4(19) | 2-5/8(66) | 3000 | 4.95(140) | 4(1.8) | 3/8(10) | 10 |
| ZAH-394S | 0.401(10.2) | 3/4(19) | 3-1/2(89) | 2100 | 5.65(160) | 4.6(2.1) | 3/8(10) | 5.5 |
