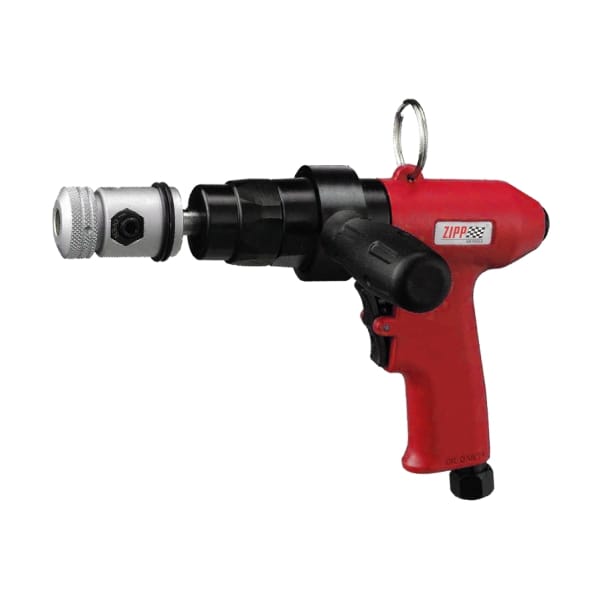

ZAT712AKI 3/8 inch Air Tapping Tool
 | Handle exhaust |
Specification:
- Tapping Capacity Aluminum: 1-3 mm
- Tapping Capacity Iron: 1-3 mm
- Free Speed: 1000 rpm
- Air Consumption: 141(5) l/min(cfm)
- Overall Length: 11.02(280) inch(mm)
- Air Inlet: 1/4Â P.T
- Net Weight: 1.63(0.74) lb(kg)
- Sound Level: 77 db(A)
| Model | Tapping Capacity | Free Speed rpm | Air Consumption l/min(cfm) | Overall Length inch(mm) | Air Inlet P.T | Net Weight lbs(kgs) | Sound Level dB(A) | |
| Aluminum mm | Iron mm | |||||||
| ZAT22AKH | 3-12 | 3-8 | 150 | 184(6.5) | 7.87(200) | 1/4 | 3.79(1.72) | 82 |
| ZAT415B2 | 1-3 | 1-3 | 1000 | 141(5) | 11.02(280) | 1/4 | 1.63(0.74) | 77 |
| ZAT712AKI | 6-12 | 6-8 | 150 | 198(7) | 9.65(245) | 1/4 | 3.9(1.77) | 82 |
Specification(air pressure at 90psi, 6.2bar, 6.3kg/cm²)
