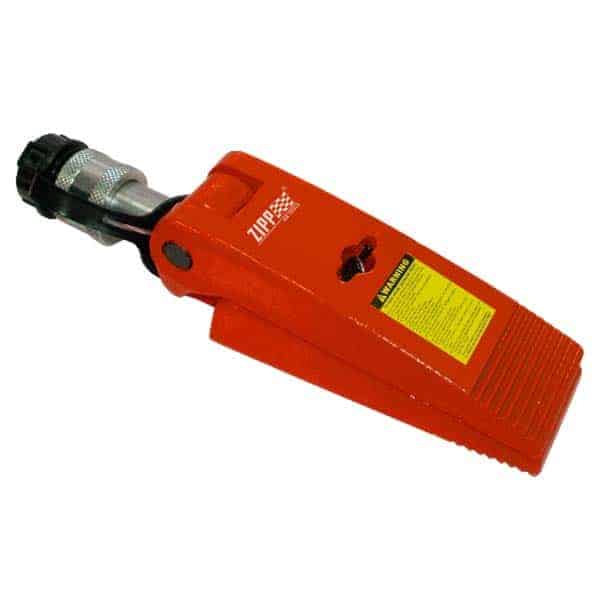

ZWSR Series
- Capacity: 1 ton
- Tip Clearance: 17.4mm
- Maximum Spread: 96.5 mm
- Maximum Operating Pressure: 700 bar
Hydrualic Wedgie and Spread Cylinder
- Single-acting, spring return.
- For use in very confined work areas.

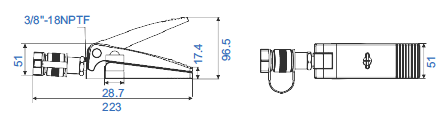

| Model Number | Cylinder Capacity | Tip clearance | Maximum Spread | Cylinder Effective Area | Oil Capacity | Weight |
| ton(kN) | mm | mm | cm² | cm³ | kg | |
| ZWSR-1 | 1(8.9) | 17.4 | 96.5 | 6.5 | 10 | 2.3 |
