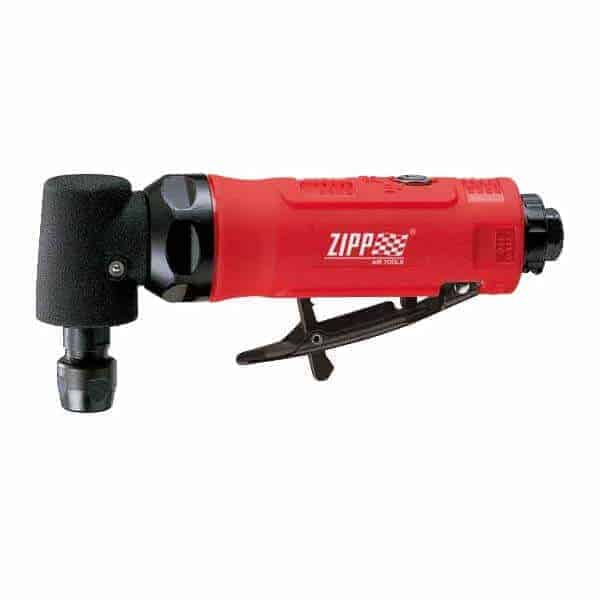

ZP319 90° Air Angle Die Grinder
- Ergonomic cushion-grip handle-Insulates against cold temperature in the hand, helps ease user fatigue, and insulates against vibration.
- Power/Speed Regulator-Allows for easy rpm adjustment.
- Rear exhaust-Directs the exhaust away from the user and the working areas.
- Twin-Bearing Spindle-This quality design results in super precise spindle concentricity less than 0.05mm and minimal vibration.
- The ZP319 Angle Die Grinder is ideal for high speed grinding and polishing.
- It can be used in finishing dies and metal molds, smoothing and shaping sheet metal and cast iron, weld finishing and other high speed polishing applications.
- Can use with 1/4″(6mm) or 1/8″(3mm) grinding accessories.
Specification:
- 0.5HP Die Grinders
- Collet Size: 1/4(6) inch(mm)
- Net Weight: 1.5(0.7) Lbs.(kg)
- Length: 7(178) inch(mm)
- Free Speed: 18000 rpm
- Air Inlet Size: 1/4 inch-NPT/PT
- Min. Hose Size: 3/8(10) inch(mm)
- Avg. Air Cons.: 3.7 cfm
ZP319K Angle Die Grinder Tool Kit
Specification:
- 1 pc Angle Die Grinder
- 5 pcs 2″ Roloc Scotch Discs
- 5 pcs 3″ Roloc Scotch Discs
- 1 pc 1/8″ Collet
- 1 pc Nipple
- 2 pcs Spanners
- 5 pcs 1/8″ Shank Grinding Stones
- 5 pcs 1/4″ Shank Grinding Stones
- 1 pc Blow Molded Case
- 2 pcs Roloc Pad
- 2 pcs Bolts
Model | Collet Size inch(mm) | Net Weight lbs(kgs) | Length inch(mm) | rpm | Air Inlet Size inch-NPT/PT | Minch Hose Size inch(mm) | Avg. Air Consumption cfm |
ZDG-236 | 1/4(6) | 1.1(0.5) | 6.1(155) | 20000 | 1/4 | 3/8(10) | 3 |
ZP319 | 1/4(6) | 1.5(0.7) | 7(178) | 18000 | 1/4 | 3/8(10) | 3.7 |
ZDG-3226 | 1/4(6) | 1.5(0.7) | 7(178) | 18000 | 1/4 | 3/8(10) | 3.7 |
ZAG-341 | Grinding Wheel 2″ | 1.5(0.7) | 7(178) | 15000 | 1/4 | 3/8(10) | 3.5 |
